関連文書
現在のファームウェアバージョン: V38
ここでは、Perdix 3ダイブコンピュータに関するすべての重要なマニュアルとリリースノートをご覧いただけます。お探しのものが見つからない場合は、カスタマーサービスチームまでお問い合わせください。
- Perdix 3 Manual - English
- Perdix 3 Manual - Japanese
- Perdix 3 Manual - Korean
- Perdix 3 Manual - Simplified Chinese
- Perdix 3 Manual - Thai
- Perdix 3 Manual - Traditional Chinese
- Perdix 3 Release Notes - English
- Perdix 3 Release Notes - French
- Perdix 3 Release Notes - German
- Perdix 3 Release Notes - Italian
- Perdix 3 Release Notes - Simplified Chinese
- Perdix 3 Release Notes - Traditional Chinese
- Perdix 3 Release Notes - Japanese
- Perdix 3 Release Notes - Korean
- Perdix 3 Release Notes - Thai
- Perdix 3 Release Notes - Spanish
- Perdix 3 Release Notes - Portuguese
注意:ファームウェアをアップデートすると、解凍組織の読み込みがリセットされます。
1. モバイル端末に最新バージョンのDive Shearwaterがインストールされていることを確認します。
2. アプリ内で、接続アイコンをタップします。
3. Perdix3は以前にペアリングされている場合、自動的に接続されます。新しく接続する場合は、下の Bluetoothガイドをご参照ください。
4. 接続が成功したら、アプリで「アップデートをインストール」を選択します。
サポート動画
Perdix 3 Bluetooth接続ガイド
Perdix 3をBluetoothで初めてモバイルデバイスに接続するための手順です。

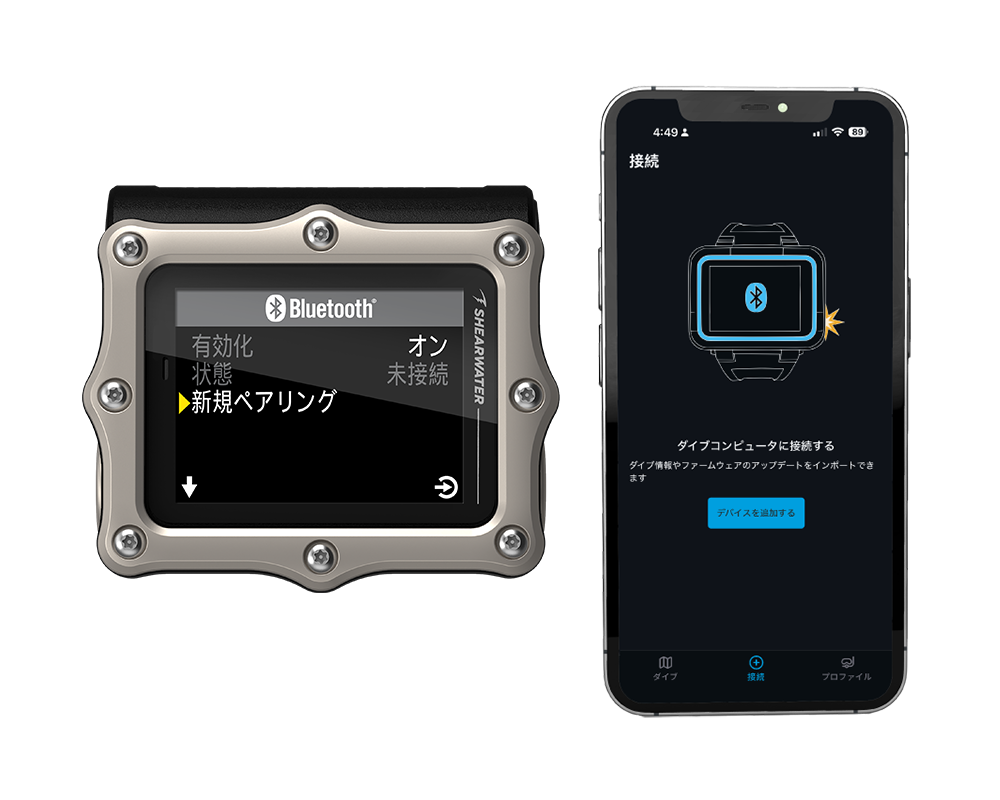

Perdix 3をDive Shearwaterとペアリングする
モバイルデバイスでDive Shearwaterアプリを開き、下部メニューの「Connect」を選択してから「Add Device」を選択します。Perdix 3ではBluetoothメニューに移動し、Bluetoothが有効(「On」と表示)になっていることを確認して、「New Pairing」を選択します。

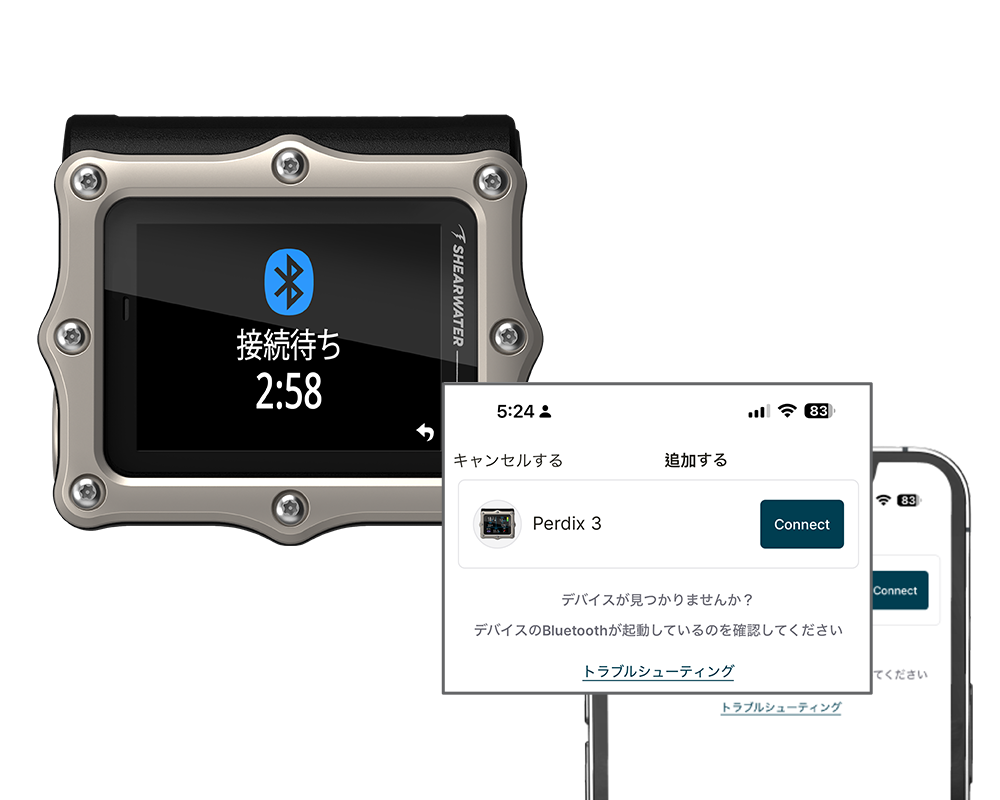

アプリで接続する
Perdix 3でカウントダウンが開始されると、アプリにデバイスが表示されますので、「Connect」を選択してください。

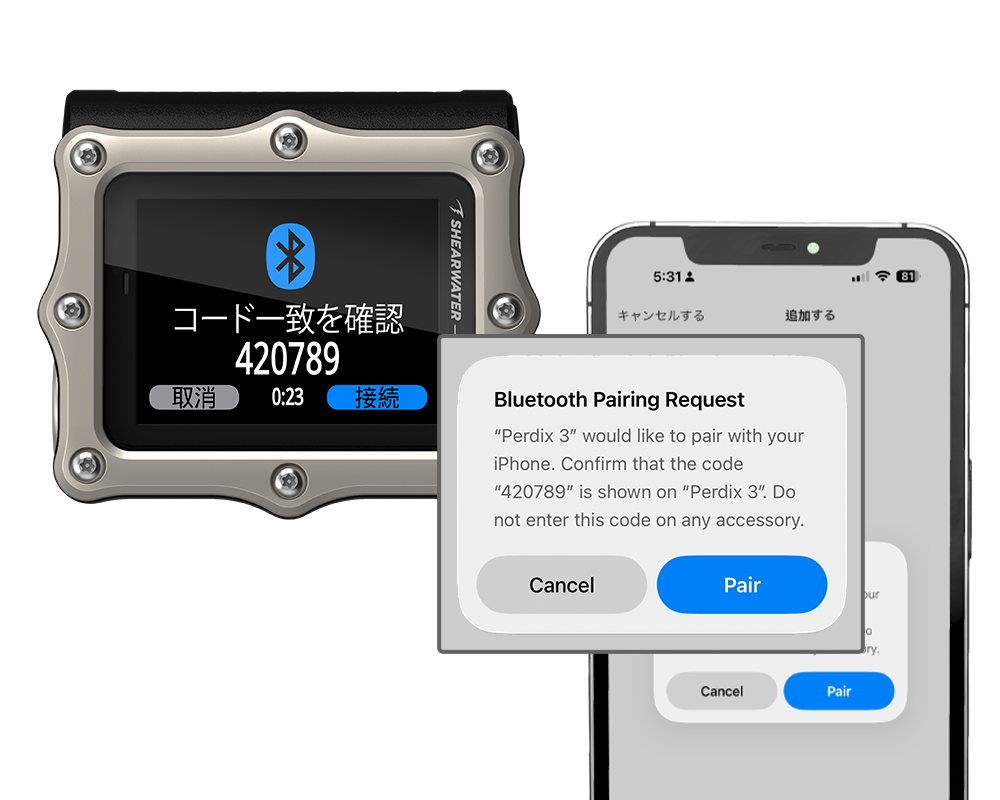

コードの一致を確認する
アプリとダイブコンピューターの両方にコードが表示されます。コードが一致していることを確認し、アプリで「Pair」を押して、ダイブコンピューターで「Connect」を押してください。

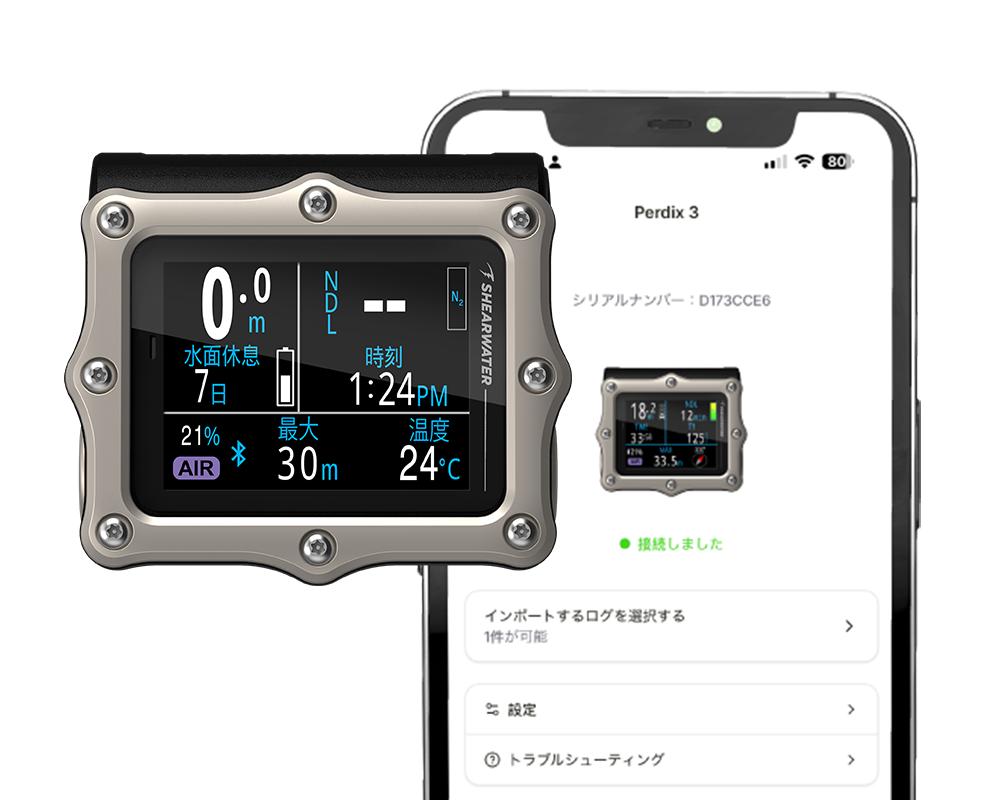

接続完了
アプリに、自動でダイブログをダウンロードするかどうかを確認するポップアップが表示されます。ダイブコンピュータでは接続済みのステータスが表示され、ホーム画面のBluetoothアイコンが青色になります。一度ペアリングすると、通信範囲内に入った際に自動的に接続されます。
BLUETOOTH FAQ
Common questions and answer for connecting your Perdix 3 to Bluetooth.
We changed the Bluetooth connection process on Perdix 3 to provide significantly faster dive downloads and stronger security. The new pairing flow may feel different from our previous dive computers, but it creates a secure connection between your Perdix 3 and each device you use.
The Perdix 3 can only maintain an active Bluetooth pairing with one Shearwater app at a time. If it is already paired with the Shearwater Cloud mobile app, it will not connect to the Shearwater Cloud Desktop app until it has been disconnected from the mobile app.
No. Once your Perdix 3 has been paired with your phone and the app, it will remain paired and should reconnect automatically whenever you select the Perdix 3 in the connect panel of the app and the dive computer has Bluetooth enabled.
You must remove the previous Perdix 3 connections from the connect panels of the Shearwater applications, from your mobile phone Bluetooth settings, and your PC Bluetooth settings.
よくある質問
まだ質問がありますか?私たちがお答えします。
Perdix 3には、すべてのダイブモードで利用できる3つの異なる画面レイアウト(Big、Standard、Tec)があります。Big(ビッグ)レイアウトは最も大きなフォントサイズで、最も見やすい画面を提供します。
標準の減圧モデルは、グラディエントファクターを備えたBühlmann ZHL-16Cです。DCIEMなどの他のアルゴリズムは、将来的に利用可能になる可能性があります。
Perdix 3には、強力でカスタマイズ可能な振動アラートシステムが搭載されています。これは、フードを着用してダイビングする際に聞き取りにくい音や、小規模なグループでダイビングする際にどのコンピュータのアラームが鳴っているかを確認しにくい音のアラームよりも効果的です。
いいえ。Perdix 3はエアーインテグレーション搭載バージョンのみとなります。
はい。Perdix 3は従来のトランスミッターに対応しています。
いいえ。Perdix 3はスタンドアロン専用製品です。ただし、内部固定PPO2セットポイントを使用するリブリーザー(CC)モードを搭載しており、クローズドサーキットリブリーザーでのダイビング時にバックアップ減圧スケジュールを計算するのに役立ちます。リブリーザーへの接続には、FischerおよびDiveCANモデルで販売されているPetrel 3をご利用ください。
Shearwaterコンピュータを長期間使用してダイビングしない場合は、電子機器で発生する可能性のある液漏れや損傷を避けるために、バッテリーを取り外すことを強くお勧めします。ダイビング履歴とデータは、バッテリーを取り外してもコンピュータに安全に保存されます。
Shearwaterは、認定サービスセンターで2年ごとにダイブコンピュータの保守を受けることを推奨しています。
Shearwater Perdix 2には、ほとんどすべての種類の単3形電池が使用できますが、Energizer Ultimate Lithiumのような1.5Vリチウム電池が最適です。
このタイプの電池は、広い温度範囲で良好な性能を発揮し、液漏れしてダイブコンピュータに損傷を与える可能性がはるかに低くなります。詳細はこちら:https://www.energizer.com/about-batteries/battery-leakage
Shearwater does not offer VPM-B unlock codes on newer computers such as Perdix 3 because these products are standardized around Bühlmann ZHL-16C with Gradient Factors. Bühlmann GF is the modern, transparent, widely supported decompression framework used across current Shearwater products, and it gives divers controllable settings for first-stop behavior and shallow-stop conservatism.
VPM-B remains a legacy model associated with older deep-stop bubble-model practice; recent decompression research and expert guidance have increasingly questioned the benefit of deep-stop profiles, and commercial-algorithm validation work found that Bühlmann GF can be tuned to pass proposed validation tests whereas VPM-B could not be tuned to address its too-deep first-stop behavior. For those reasons, adding VPM-B to newer products would create additional testing, support, and documentation burden without a clear evidence-based benefit for most customers.
